Corgy - A Deep Learning Framework for macOS and iOS parallelized by Metal

By Buqian Zheng(buqianz) and Yongkang Huang(yongkan1)

Poster

We implemented Corgy, a deep learning framework in Swift and Metal. Corgy can be embedded into both macOS and iOS applications and be used to construct trained neural networks and evaluate them with ease. We achieved more than 60x speedup on different devices with different GPUs.

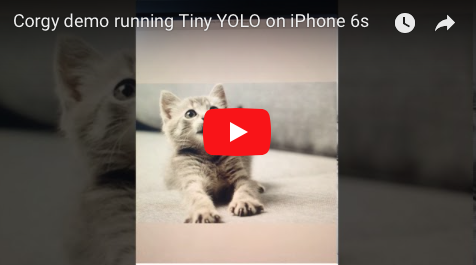

Demo Video

Background

Metal 2 framework is an interface provided by Apple that provides near-direct access to the graphics processing unit (GPU) on iPhone/iPad and Mac. Besides graphics, Metal 2 incorporated a bunch of libraries that provide excellent parallelize support to the necessary linear algebra operations and signal processing functions that capable of running in various kind of Apple devices. These libraries made it possible for us to build a well implemented GPU-accelerated deep learning models on the iOS devices based on the trained model given by other frameworks.1

Generally speaking, the inference stage of a trained neural network is very computation intensive, especially for those models that have a considerably large number of layers or applied in the scenarios that are necessary to process high-resolution images. It’s worth notice that there is a tremendous amount of matrix computation(eg. convolutional layer) which is appropriate to apply parallelized operation to optimize the performance.

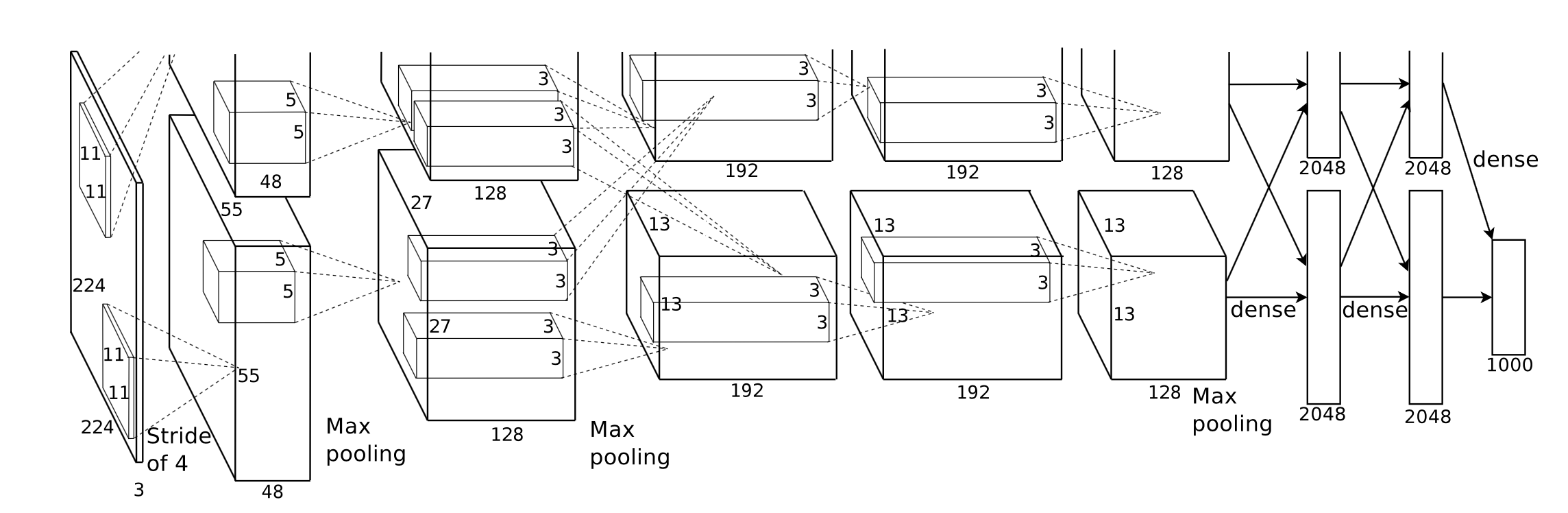

A sample Neural Network(AlexNet) with multiple layers2

Challenges

Usability

The first challenge we confronted is to design a good abstraction of application programming interface that is expressive, easy to use with the low learning curve that is easy to use to our users.

During the entire development process, we tried the best effort to keep the public API as simple as possible, while with all necessary properties to create every component demanded by leveraging the functional programming mechanism provided by Swift. We also deliberately hid unnecessary hardware abstraction provided by Metal to smooth the learning curve.

Though the trained model of the various network is easy to obtain on the Internet, the heterogeneousness among them that caused by different implementation applying various kind of tools inured the work to create a universal model importer.

Computing

Some of the computation is easy to understand by its conception but requires attentive thought when you want to create an effective implementation by abstracting it. Convolution is a representative example.

The intrinsic property of the convolution operation does not have a good locality, the vanilla implementation is hard to understand and ineffective with complicated for loops. Also, we need to consider the abstraction provided by Metal 2 and create a convenient way to share necessary information and data structures between host and device with careful consideration of data representation and memory layout.

Cross-Platform

During the development phase, we are conscientious when dealing with the ability for our code that runs normally on macOS and iOS with no compromise in performance on both platforms. We tried the best effort to maintain the code library that is capable to compile and execute in both platforms. We are cautious to maximize the code shared between the different target and reusing the code as much as possible.

Debugging

Since a fully implemented component of the neural network layer should provide support with the reasonable amount of parameters that make the component enough usable, the complexity of the components is actually quite impressive. For instance, the convolutional layer should support the parameters incorporating padding, dilation stride etc and all of them should be cautiously considered when doing the parallelization that achieves reasonable performance. We constructed some simple networks to do the regression test. Test cases are created in other frameworks (Primarily PyTorch and Keras) to make sure that all the implementation works correctly.

Immature Programming Language Ecosystem

Swift was first developed in July 2010 and published and open sourced in 2014. Though it’s been almost 4 years since it’s publication, the lack of the impactful library is still an unignorable problem. Some reason caused this situation, the dominant role of Apple and the fast iterative natural of Swift might be the reason for this phenomenon. Some library that is crucial for us is either not powerful or functional enough to our needs, or nor well-maintained by the individual developer that invent them. We spent quite a lot of time to implement a well-functioned tensor class Variable for our demands.

Also, this is another reason to hinder the development of a universal model parser that the file and string handling function have very limit capability.

In addition, the development and debugging tools are basically restricted to Xcode, though there are other choices that more general for us, Xcode is still the de facto standard tool for our development.

Performance Tuning

For the performance tuning for the mobile devices, Apple does not provide detailed hardware specification for their SoC, marketing name is widely used by media and it’s hard to deduce what’s the exact impact of a specific hardware feature and fine-tuning the performance of the implementation.

Approach

We are using Swift programming language, specifically, Swift 4.2 which is the latest so far; Metal 2 framework and some library functions provided by Metal Performance Shader (Basically Linear Algebra Functions). Though Apple launched CoreML SDK in Spring 2017 that incorporated some support for convolutional neural network, we are not using them in Corgy to gain the invaluable experience in developing parallelized implementation of the network layers and provide succinct and intuitive API’s with good usability and smooth learning curve for the users to migrate a model from other frameworks effortlessly.

Our target machines are all devices running macOS and iOS, such as iMac, MacBook, iPhone, and iPad. Specifically, the device with the platform that supports MPS linear algebra library (i.e. after iOS 10.0 and macOS 10.13), which means that the iPhone launched after iPhone 5, the iPad launched after iPad (4th gen), and iPod Touch (6th gen) are supported as the iOS platform. The Mac product line gets even wider coverage, including iMac produced after late 2009 or newer, all the MacBook Series launched after mid-2010 and iMac Pro.

The parallel abstraction of Metal 2 is very much alike CUDA: when dispatching computer pass to GPU, programmers will first write kernel functions that will be executed by each thread, then specify the number of thread group(aka. block in CUDA) in grid and number of threads in each thread group, Metal will execute kernels over this grid, the kernel is implemented in a C++14 dialect named Metal shading language. Inside each thread group, there is the smaller unit called SIMD group, means a bunch of threads that share same SIMD instructions. But under our implementation, there is no need to consider this.

Metal provides an API named MTLCommandBuffer which stores encoded commands that are committed and executed by GPU. Each time we want to launch a task to be performed by GPU, the precompiled kernel functions would be encoded into GPU instructions, embedded into the Metal shading pipeline and be sent to MTLCommandBuffer. The Metal buffer used to store the computation parameter that needs to be passed to the device is also set at this stage. Then with specified number of thread groups and threads per group, the command handled by command buffer would be completely encoded and all set to commit to the device. The GPU will schedule the task and notify the CPU thread which submits the work after the execution is finished.

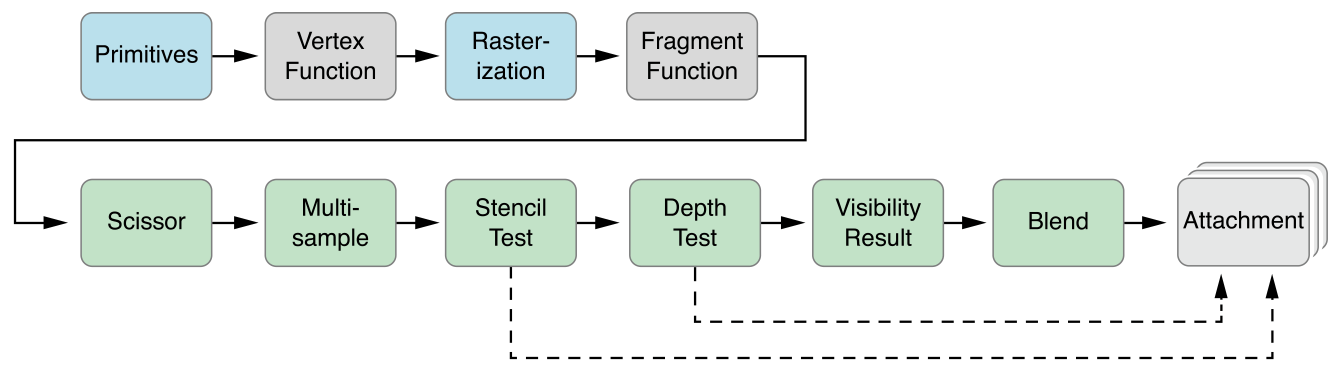

Metal Graphics Rendering Pipeline 6

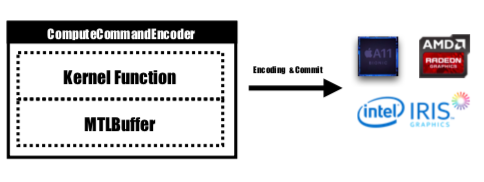

The kernel function would be encoded by MTLComputeCommandEncoder and the task will be created for all the supported platform.

In our implementation, we widely utilized an intuitive way to map the element into GPU threads: map each element in the output tensor of current layer to one GPU thread: each thread computes and updates exactly one element of the output, and the input will be read-only, so we don’t need to worry about synchronization between threads. Under this mapping, threads with continuous ids might read input data from different memory locations but will always write to continuous memory locations. So there won’t be scatter operations when a SIMD group is writing to memory.

We designed a tensor class Variable as the foundation of all the implementation, we utilized and encapsulated the linear algebra operation into the Variable class instead of writing an additional kernel to deep very dive in the operation that not our primary focus to reduce the complexity of implementation and saving our time to focus on accelerating the network layers.

Implementations

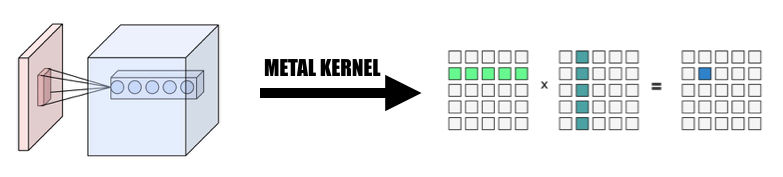

1. Change convolution to giant matrix multiplication

We collect the data from the input in a parallelized manner to form a giant matrix of both the input variable and the weight. We cache the weight of each convolutional layer to avoid recalculation. The padding of the convolutional layer would be generated during the parallelization transformation during the calculation, then we invoke the MPSMatrixMultiply to the giant matrix and transform the data from the giant matrix back into the normal tensor class we created. The method is described in class slides.

The matrix would be created by kernel functions.

2. The design and implementation of Variable class

The variable class is the foundation of our implementation as the tensor representation. We encapsulated the MPSMatrixMultiplication for the variable (define the Unicode multiplication sign (×) as an infix operator to represent it elegantly :-)).

The underlying data structure of the variable is a UnsafemutableBufferPointer that points to the data type, we chose the 32-bit Float for simplicity. The Variable class maintained two data size, the count held the element number that actually stored, the actualCount is the size of all the elements the rounded up to the page size of the platform obtained by using getpagesize().

We maintain these two values to make sure that the makeBuffer(bytesNoCopy:) to create the buffer directly on the VM region specified and avoid redundant reallocation which reduce the overhead. If the memory to be passed to Metal is not page aligned, then Metal will not be able to use this memory as input or output buffer. We’ll have to use makeBuffer(bytes:) method, which will create a new buffer and copy data from the input memory location. So we always need to allocate more memory than needed to make sure all memories in Variable are page aligned. So we need two values to keep track of how large this chunk of memory exactly is and how large should we use.

3. Number of element processed by a single thread

We tried to map one thread to several elements, from 2 to 16 elements per thread, the performance is almost the same but much complexity is added to our project, so we discarded this approach.

Result

All CPU versions mentioned below are naive single-threaded CPU code without SIMD optimization. Compiler optimization at level -Ofast is applied.

Performance of our implementation is good, not not good enough.

We applied iPhone 6s and a 15-inch MacBook Pro as the benchmark platform. The hardware are specified below:

MacBook Pro(Retina 15-inch, Mid 2015)

  • CPU: Intel Core i7-4770HQ
    • 2.20GHz, 4 cores with Hyper-Threading, 3.4-GHz Turbo Frequency
    • L2: 256k cache per core, 6M L3 Cache
  • 16 GB Memory
    • 2 * 8GB DDR3 1600MHz
  • Intel Iris Pro Graphics 5200
    • 40 Cores, embeded in CPU

iPhone 6S

  • SoC: Apple A9
    • 1.85 GHz, 2 Cores 1.85 dual-core 64-bit ARMv8-A “Twister”
    • Cache : L1 64 KB instruction + 64 KB data, L2: 3MB, L3:4MB
    • GPU: PowerVR Series 7XT GT7600 (six-core)
      • PowerVR Rogue Architecture with 192 FP32 ALU Cores(FP32) and 384(FP16) cores
      • 6 USC
  • 2 GB LPDDR4 RAM

Comparing with the naive CPU version implementation without parallelism, our GPU version is more than 60x faster.

Because the MNIST model is too small, its result may not reflect the accurate speedup. And we don’t have a well implementated single-threaded version, we cannot give an accurate speedup number. Because the CPU version is too slow, the speedup on Tiny YOLO is too large to believe.

Experiment network attribute:

MNIST:

  • input size: 1 * 28 * 28
  • number of weights: ~0.1M
  • number of convolutional layers: 2
  • number of fully connected layer: 1

YOLO:

  • input size: 3 * 416 * 416
  • number of weights: ~17M
  • number of convolutional layers: 9
  • number of fully connected layer: 0

Measurement result:

iPhone 6s MNIST Tiny YOLO
CPU 1500ms 753s
GPU 0.025s 0.5s
speed up ~60x ~1500x
Macbook pro MNIST Tiny YOLO
CPU 650ms 729s
GPU 10ms 0.028s
speed up ~65x ~26000x

Based on above benchmark we can see that as the problem size increases,

Why we say our speedup is not good enough? Because when comparing with Apple official implementation of MPSCNNConvolution, we are only about one third as fast, which means there is still lots of optimization space. This comparison is based on an open source implementation of YOLO on iPhone using official MPSCNNConvolution which can recognize ~5 images per second while our implementation can only achieve ~2 images per second.

And due to a limited time, we weren’t able to create a better baseline version and CPU parallelized version to do the benchmark, which makes the speed up number too big.

Also it is worth reporting the performance gain on different problem size. As we can see, MNIST has only 0.1 million weights while Tiny YOLO has 17 millions. Tiny YOLO is way more complex than MNIST but the running time of GPU version didn’t scale that much. That is again because of Amdahl’s law. Each a GPU task is launched, the corresponding GPU commands needs to be encoded into command buffer. This process is inherently serial. When the problem size is small, this process contributes a lot to total running time, so by parallelizing the neural network inference stage in MINST may not get same speed up as in Tiny YOLO, where the running time overhead is neglactable.

What limited your speedup?

  1. In convolutional layer, tt takes a big amount of time to convert data between matrix and tensor. If we can somehow eliminate this overhead, our implementation might be as fast as the Apple official implementation.
  2. In some of the compute kernels, there are ifs and fors which might cause divergence, leading to poor SIMD utilization.

Deeper Analysis: break down of the execution time of the different phase.

Take Tiny YOLO as example, in a sample run with total running time 227ms on Macbook, the convolutional layers used 207ms, 92% of the total running time. The Pooling layers used 14ms(6%), and ReLU used 6ms(2%). According to Amdahl’s law, if we want to further improve the performance, we should definitely keep working on convolutional layer.

Overall, We believe that our choice of Metal framework to do Neural Network acceleration on iOS and macOS devices is sound, especially for iOS devices. Since it has fewer cores, even with SIMD instructions, a well-tuned CPU version is less likely to get similar performance as GPU version.

Division of work

Equal work are done by both team members.
